2.5" 63.5mm Y Pipe Jig (Digital file)

Welcome!

(Digital file)

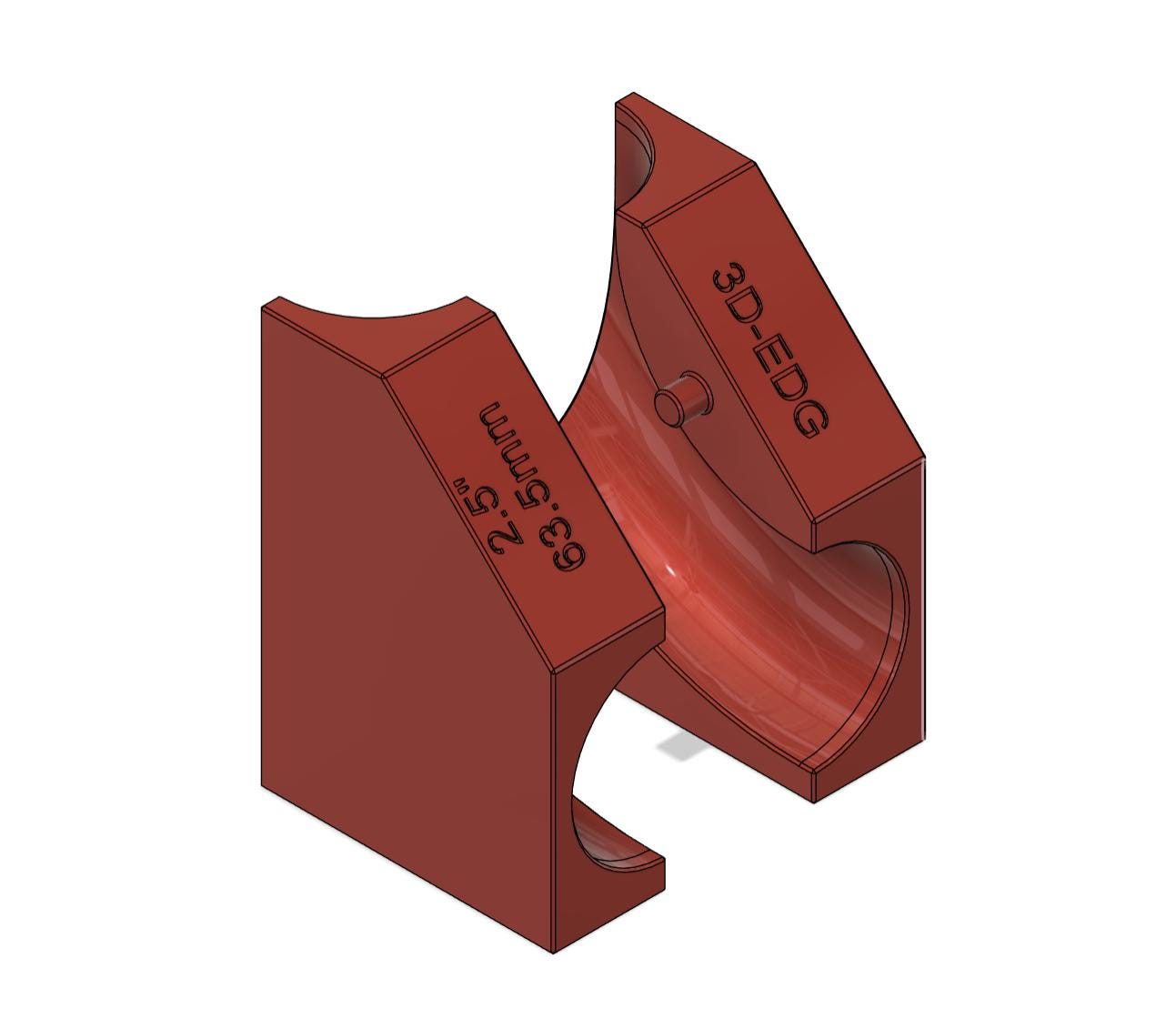

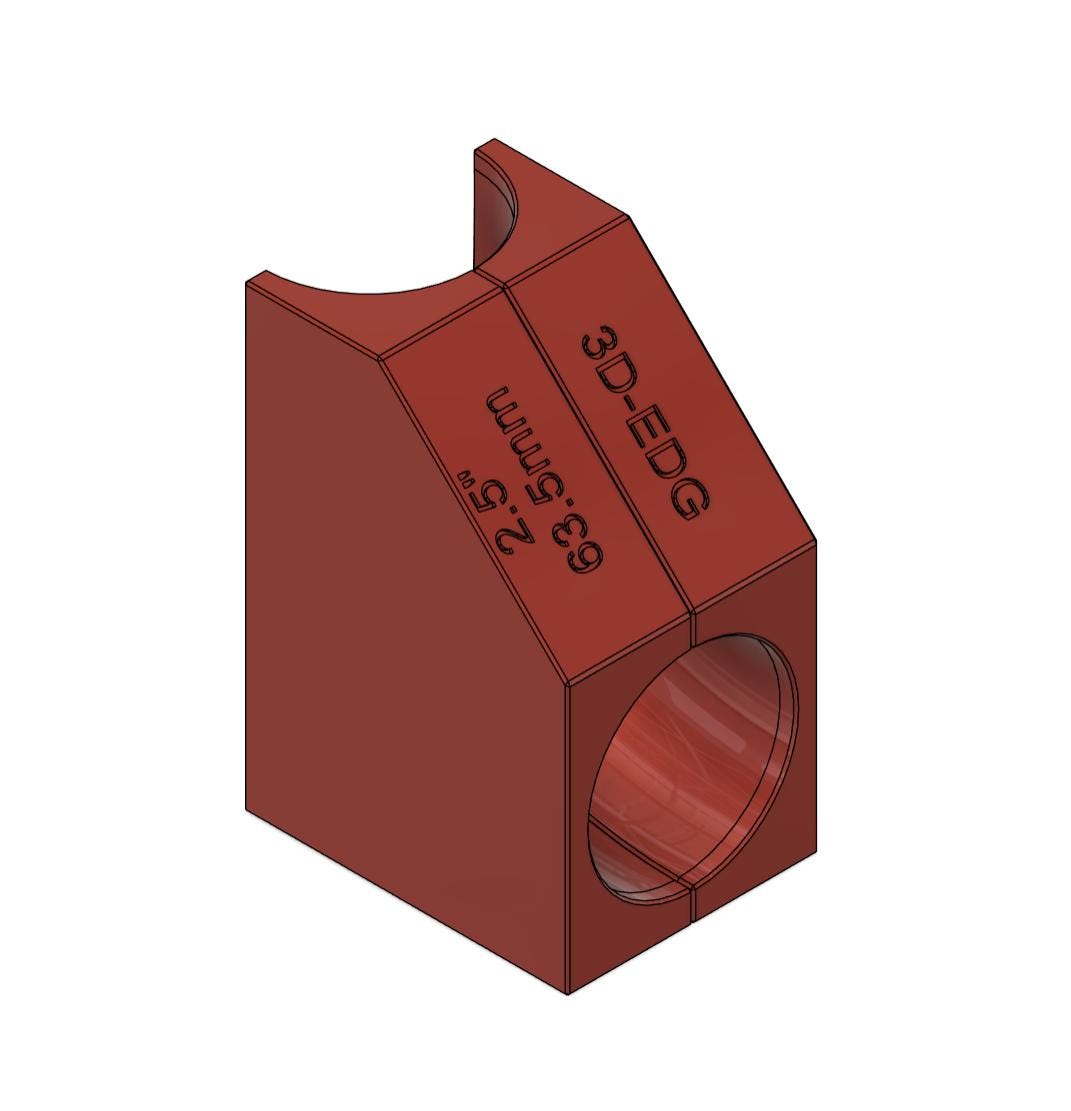

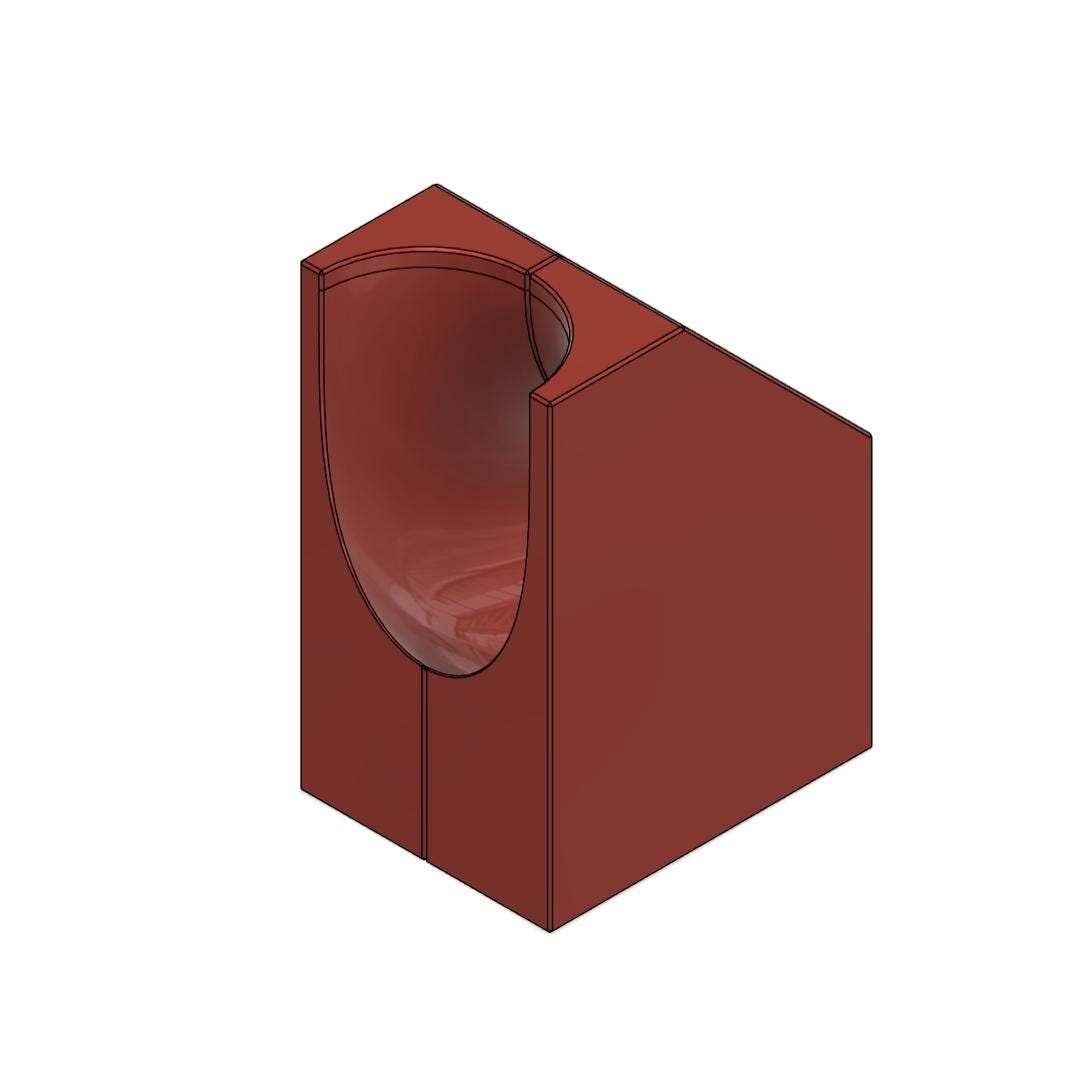

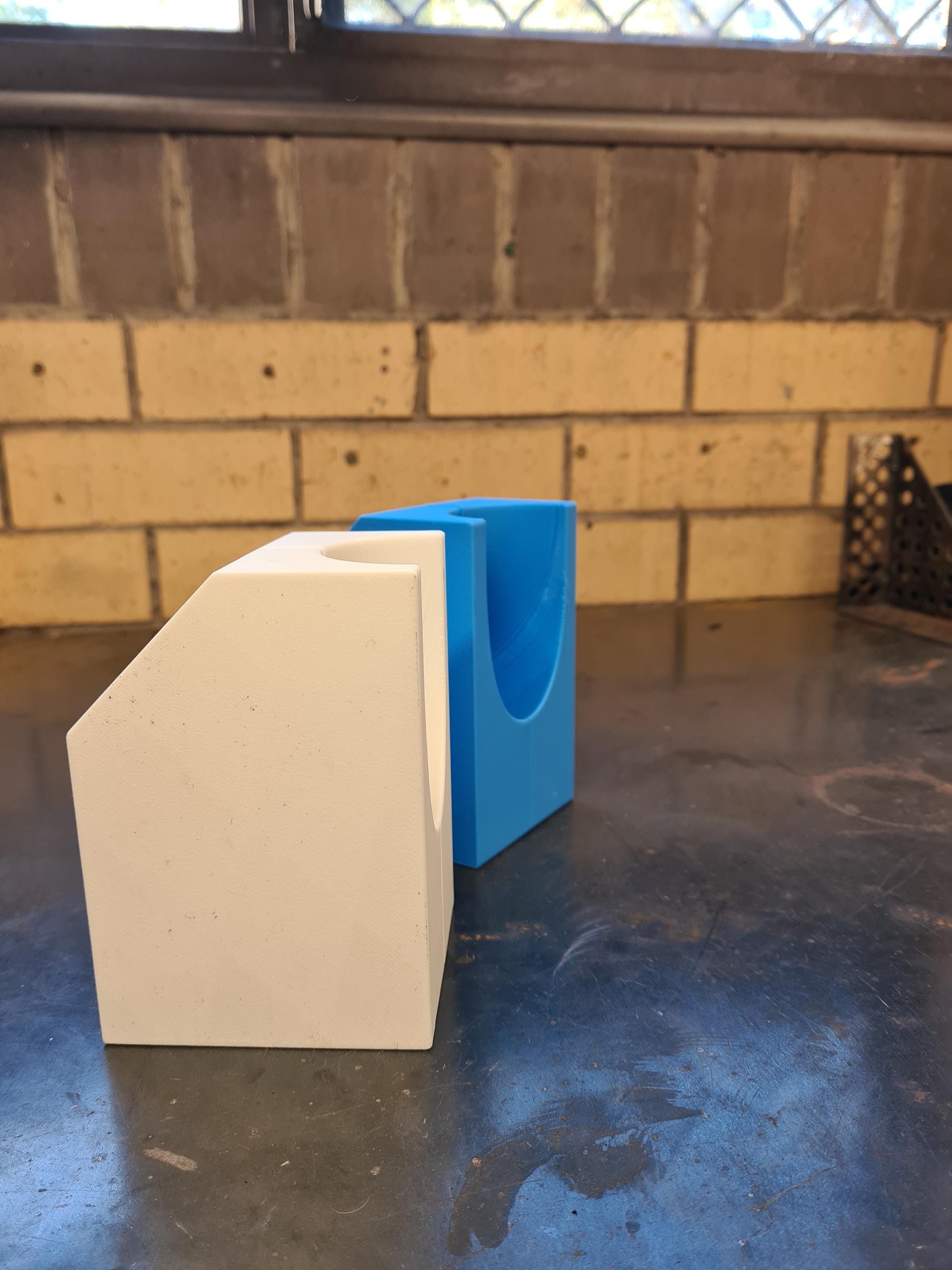

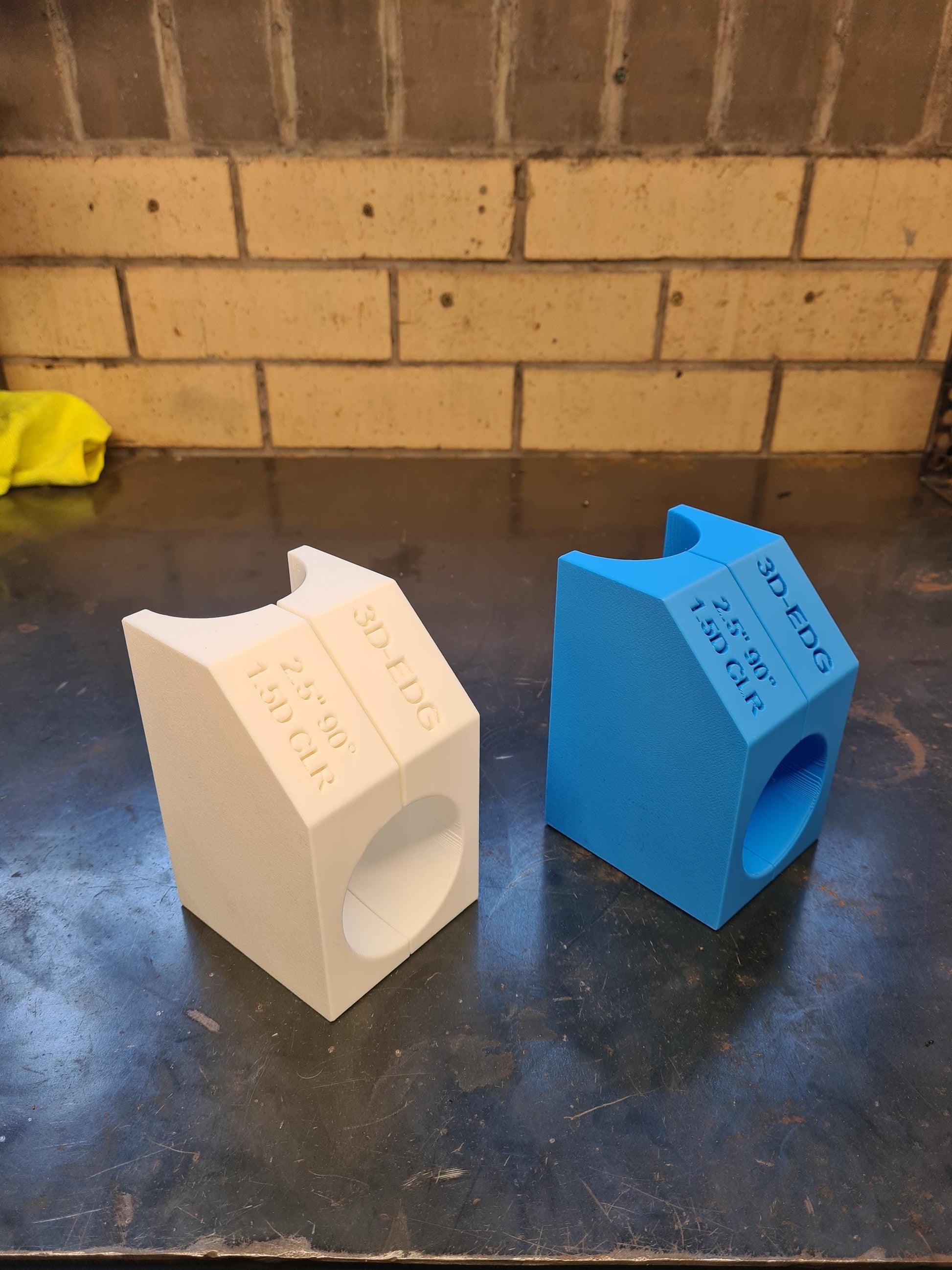

This jig is for easy manufacturing of Y Pipes from 2.5" (63.5mm) mandrel bend pipe!

File comes with 3 centre line radius profiles; 1.5, 1.2 and 1

Take all the guess out of your fabrication project!

( DIGITAL FILE )

If there is any size or radius you dont see please feel free to reach out!
