5" 127mm Y Pipe Jig!!! (digital file)

Welcome!

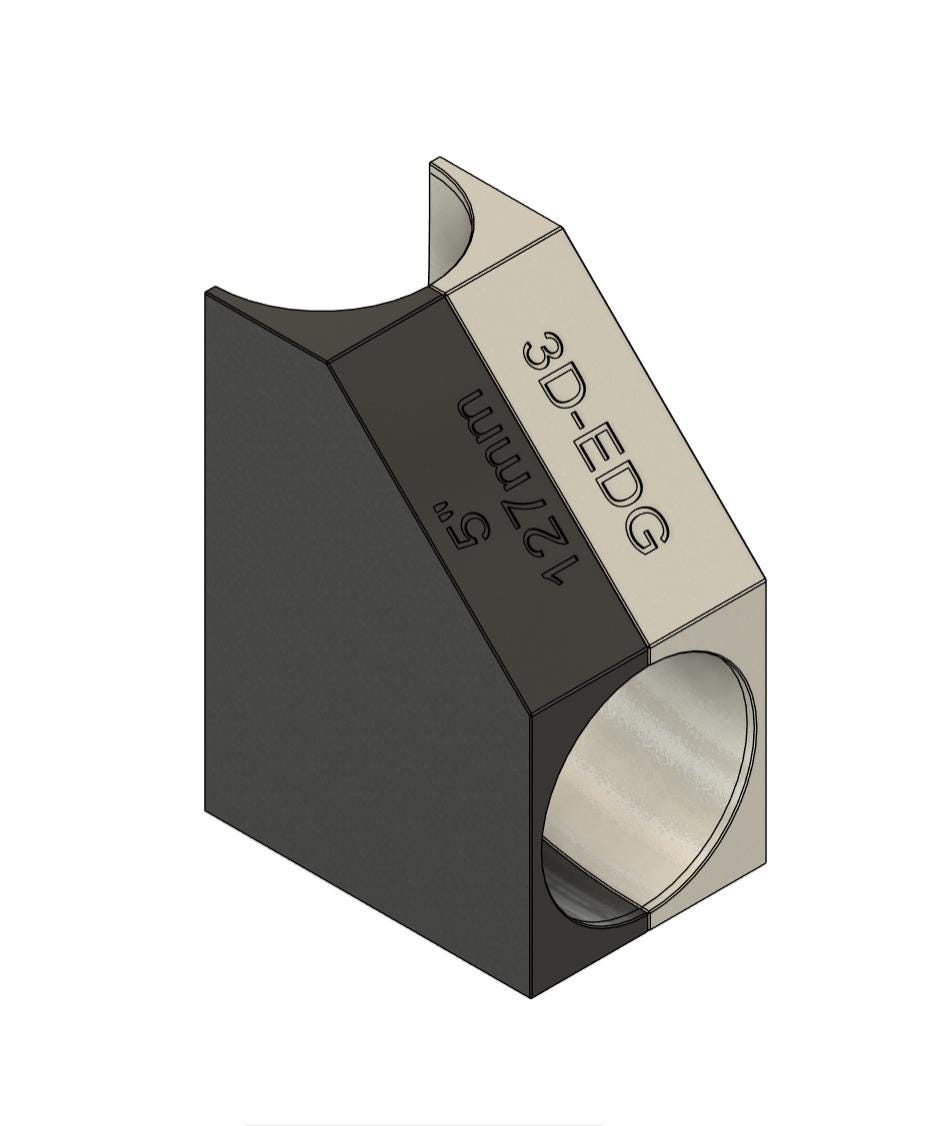

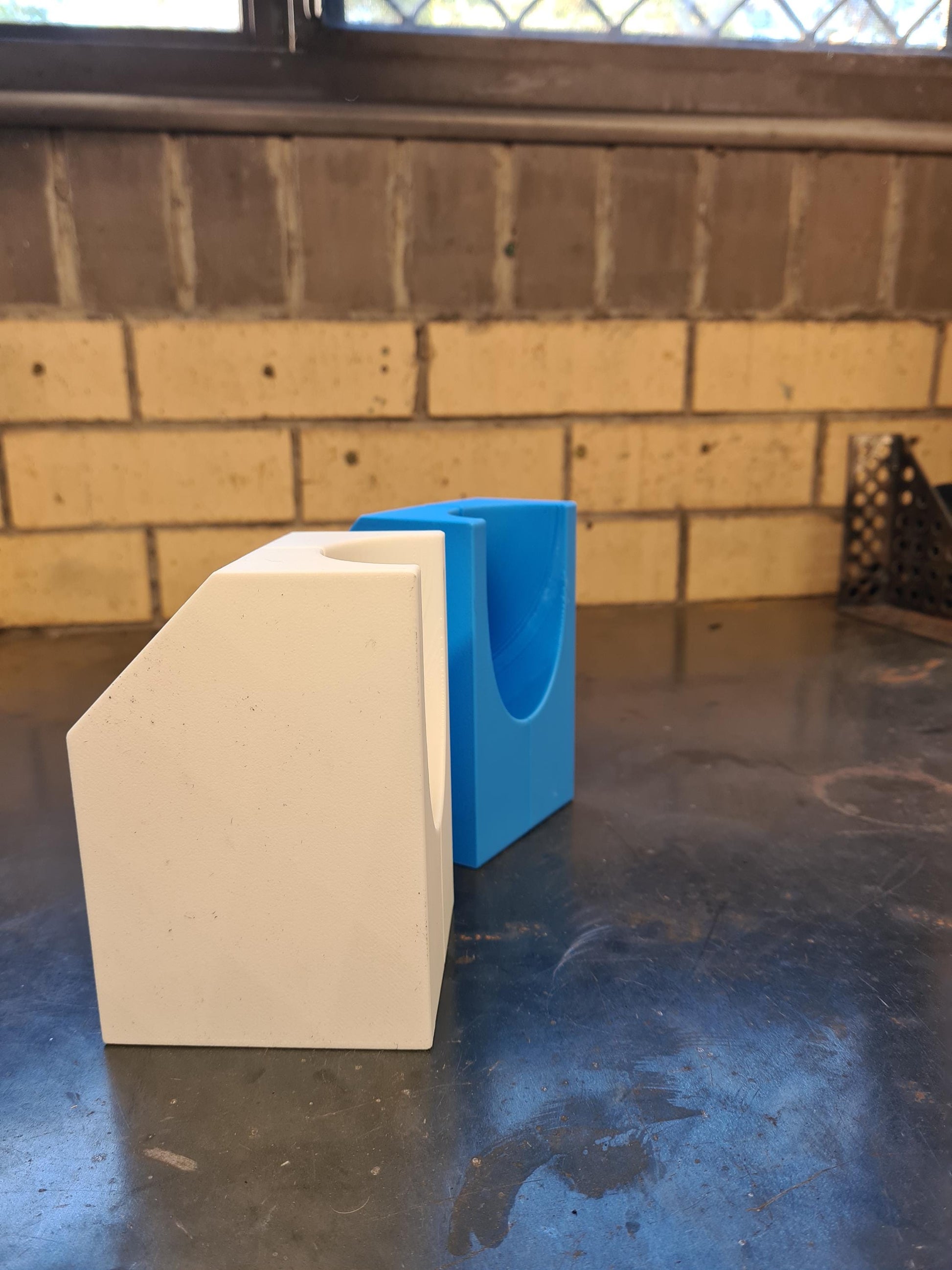

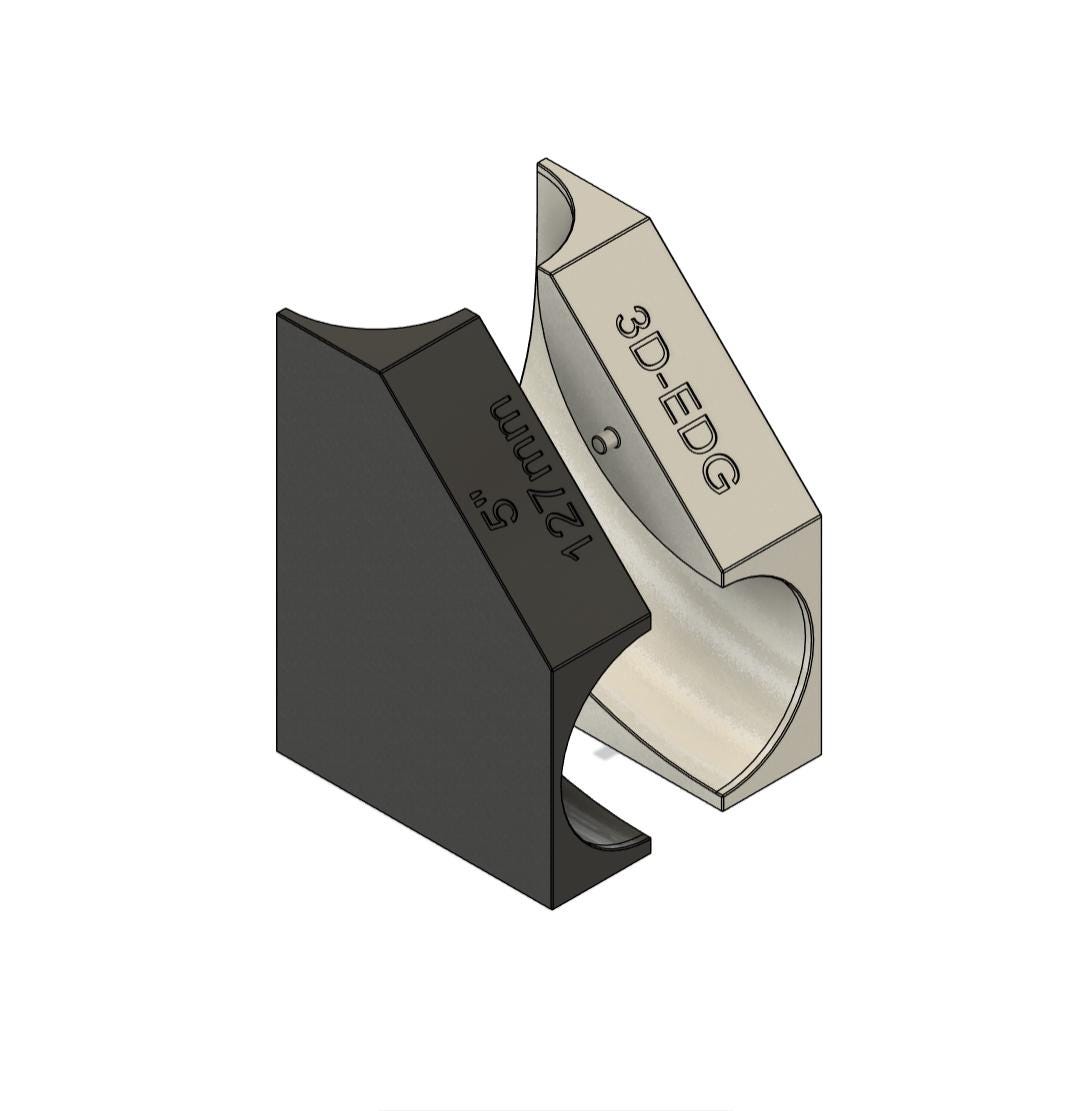

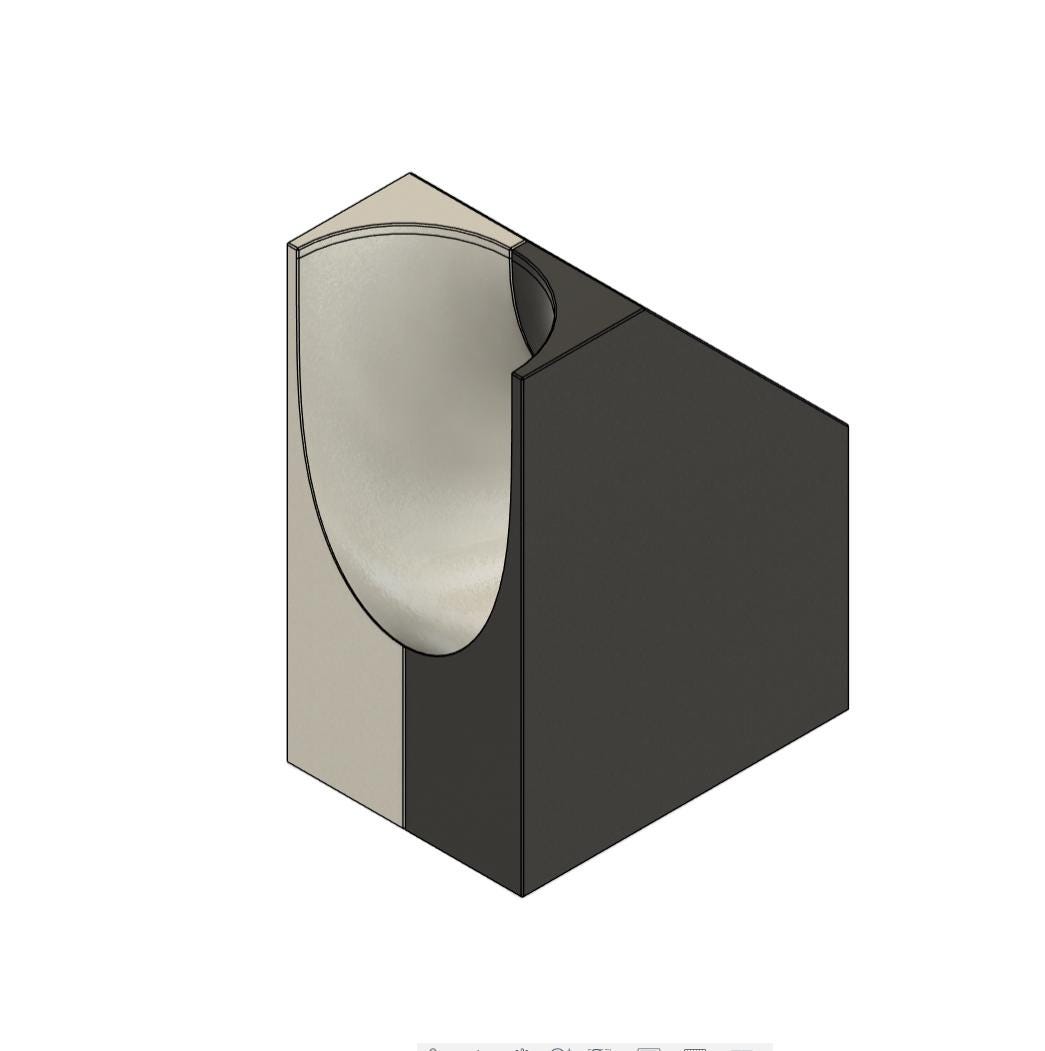

This jig is for easy manufacturing of Y Pipes from 5" (127mm) mandrel bend pipe!

File comes with 3 centre line radius profiles; 1.5, 1.2 and 1

*This jig is very large and will require a print bed slightly larger than 256mm*

Take all the guess out of your fabrication project!

( DIGITAL FILE )

If there is any size or radius you dont see please feel free to reach out!
